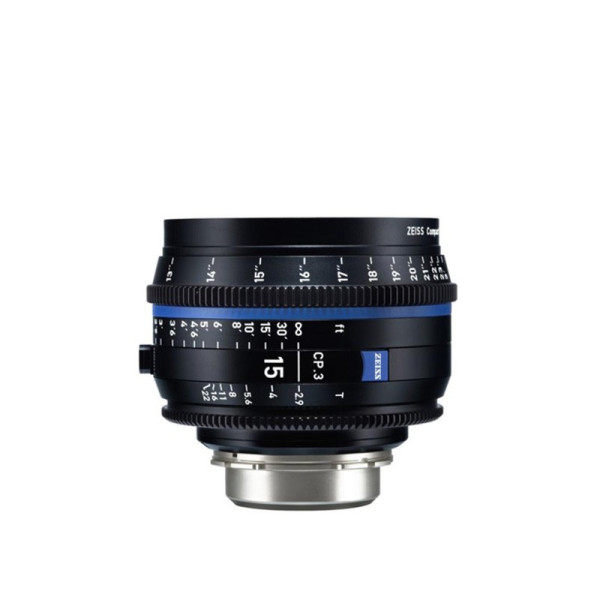

Zeiss Compact Prime CP.3 - 15mm T2.9

Objectif cinéma focale fixe 15mm T2.9 (Full Frame)

Image(s) non contractuelle(s)

Les lentilles ZEISS CP.3 présentent les caractéristiques nettes dont ZEISS est connu, ainsi qu'un système de montage interchangeable et une couverture intégrale.

Monture optique

Type Nikon F

Type Micro Four Third

Type Sony E

Type PL

Type Canon EF

Unité de mesure

Métrique (métre)

Impérial (Feet)

Référence : 2189-452 - Id : 1175359

The ZEISS CP.3 lenses offer the perfect combination of high image quality and reliable usability. They exhibit the clean, crisp characteristics ZEISS is known for, together with an interchangeable mount system and full-frame coverage.The ZEISS CP.3 XD version features innovative and ground-breaking lens data technology to speed-up and simplify the workflow on set and in post-production.

True cine look
Ranging from 15 mm to 135 mm, the ten focal lengths available in the ZEISS Compact Prime CP.3 or CP.3 XD series cover all applications from wide-angle to telephoto. The ZEISS CP.3 lenses feature advanced lens coatings, painted lens rims and special light traps within the barrel to eliminate unwelcome veiling glare and flares. The result is higher contrast, richer blacks and more saturated colors.

Clean and crisp ZEISS look which matches perfectly with other ZEISS cinema lenses
Color matching and covering full frame across the full range of focal lengths from 15 to 135 mm
Special lens coatings support high-dynamic range projects

Ultimate cine ergonomics
The ZEISS CP.3 lenses are a professional toolset that simplifies your work on set. They are easy to handle, allow for fast changeover of equipment and give you great creative freedom to make your ideas come to life.

Standardized positioning of the focus rings and a consistent 95 mm front diameter allows for fast and easy changeover while on set
Extraordinarily smooth focus rotation even in extreme temperature conditions thanks to a new, sophisticated construction design
Consistent T-stops simplifies lighting on set and exposure compensations (T2.9 for 15 to 21 mm and T2.1 for 25 to 135 mm)

Compactness redefined
The compact and light-weight design enables you to use different stabilizing systems and to have a compact camera setup that is ideal for shooting in narrow spaces and for capturing dynamic shots.

The compact and light-weight design is ideal for handheld, gimbal, drone and Steadicam applications
Consistent size and weight across most of the focal lengths enables quick change of lenses when used on drones and gimbals
The ultra-smooth focus rotation allows use of small focus motors

	Aperture	Close Focus¹	Length²	Front diameter	Weight	Horizontal Angle of View
						Fullframe³	APS-H⁴	Super 35⁵	Normal 35⁶	APS-C⁷	MFT⁸
CP.3 & CP.3 XD 15 mm/T2.9	T 2.9 to T 22	0.3 m 12"	83.7 mm 3.30"	95 mm 3.7"	0.87 kg 1.9 lbs	100°	90°	79°	73°	73°	60°
CP.3 & CP.3 XD 18 mm/T2.9	T 2.9 to T 22	0.3 m 12"	83.7 mm 3.30"	95 mm 3.7"	0.86 kg 1.9 lbs	89°	80°	69°	63°	64°	51°
CP.3 & CP.3 XD 21 mm/T2.9	T 2.9 to T 22	0.24 m 10"	83.7 mm 3.30"	95 mm 3.7"	0.82 kg 1.8 lbs	81°	71°	61°	55°	56°	45°
CP.3 & CP.3 XD 25 mm/T2.1	T 2.1 to T 22	0.26 m 10"	83.7 mm 3.30"	95 mm 3.7"	0.82 kg 1.8 lbs	72°	62°	53°	47°	48°	38°
CP.3 & CP.3 XD 28 mm/T2.1	T 2.1 to T 22	0.24 m 10"	83.7 mm 3.30"	95 mm 3.7"	0.84 kg 1.9 lbs	65°	57°	48°	43°	43°	34°
CP.3 & CP.3 XD 35 mm/T2.1	T 2.1 to T 22	0.3 m 12"	83.7 mm 3.30"	95 mm 3.7"	0.80 kg 1.8 lbs	54°	47°	39°	35°	35°	28°
CP.3 & CP.3 XD 50 mm/T2.1	T 2.1 to T 22	0.45 m 18"	83.7 mm 3.30"	95 mm 3.7"	0.77 kg 1.7 lbs	40°	34°	28°	25°	25°	20°
CP.3 & CP.3 XD 85 mm/T2.1	T 2.1 to T 22	1.0 m 3'3"	83.7 mm 3.30"	95 mm 3.7"	0.88 kg 1.9 lbs	24°	20°	17°	15°	15°	12°
CP.3 & CP.3 XD 100 mm/T2.1 CF⁹	T 2.1 to T 22	0.7 m 2'6"	126.5 mm 4.98"	95 mm 3.7"	1.01 kg 2.2 lbs	20°	17°	14°	13°	13°	10°
CP.3 & CP.3 XD 135 mm/T2.1	T 2.1 to T 22	1.0 m 3'3"	126.5 mm 4.98"	95 mm 3.7"	1.15 kg 2.5 lbs	15°	13°	11°	9°	9°	7°

1) Close focus distance is measured from the image plane
2) Front to PL mount flange
3) Horizontal angle of view for a full-frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42 x 0.94")
4) Horizontal angle of view for an APS-H camera (aspect ratio 1:1.81, dimensions 30.2 mm x 16.7 mm / 1.19" x 0.66")
5) Horizontal angle of view for an ANSI Super 35 Silent camera (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98" x 0.74")
6) Horizontal angle of view for a Normal 35 Academy camera (aspect ratio 1:1.37, dimensions 22 mm x 16 mm / 0.87" x 0.63")
7) Horizontal angle of view for an APS-C camera (aspect ratio 1:1.50, dimensions 22.3 mm x 14.9 mm / 0.88" x 0.59")
8) Horizontal angle of view for a Micro 4/3 (MFT) camera (aspect ratio 1:1.33, dimensions 17.3 mm x 13 mm / 0.68" x 0.51")
9) CF: Close focus capability"
