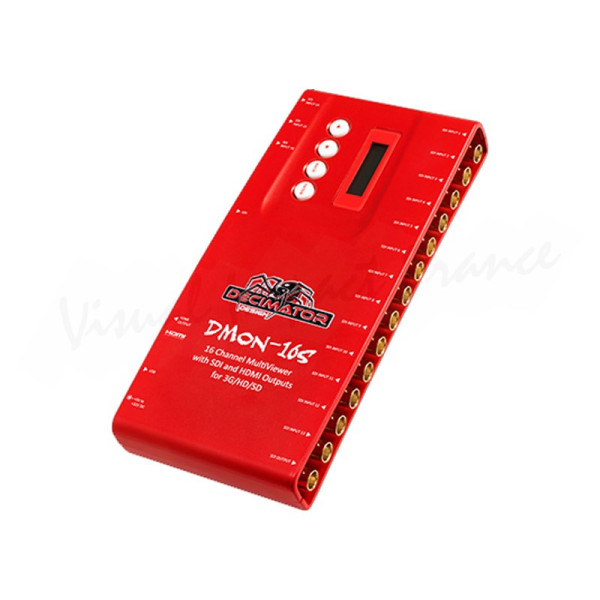

Decimator DMON 16S

The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

• Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer or 16 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Safe Action and Safe Title overlay per window with individual enables and adjustment
• Centre Cross overlay per window with individual enable
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
• Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• Pass-Through mode allowing any of the 16 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
• In Pass-Through mode the selected input is passed through to the HDMI output
• This unit also includes:
  - 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
  - RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
  - USB port for control and firmware updates
  - Heavy duty metal box
  - Metal Thread Locking DC Power Socket
