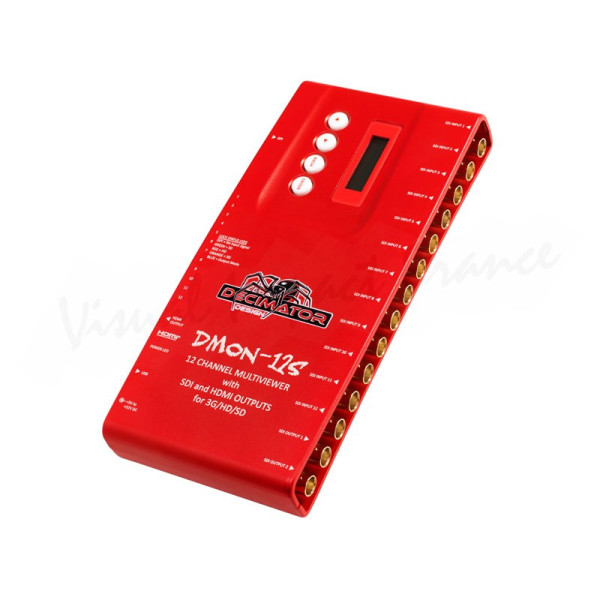

Decimator DMON 12S

1 to 12 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts

Image(s) non contractuelle(s)

The DMON-12S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having

En réapprovisionnement

1 680,00 € ^TTC

1 400,00 € ^HT

Low cost miniature (3G/HD/SD)-SDI 1 to 12 channel Multi-Viewer or 12 to 1 input multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Safe Action and Safe Title overlay per window with individual enables and adjustment
Centre Cross overlay per window with individual enable
Audio ID overlay
Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
Tallies can be applied to either Tally Boxes (Default), Uutside Safe Action Area or Border
Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
Load and restore Custom Layouts
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen and Multi-Viewer mode
Low latency buffering for each input allowing non-synchronous inputs
Linked (3G/HD/SD)-SDI and HDMI outputs
12 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per window
Pass-Through mode allowing any of the 12 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
The DMON-12S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
This unit also includes:
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
