Production MatteBox for cameras with 16x22mm chip or film format. Carbon-Design, lightweight and impact resistant.
Lightweight and ultra compact, ideal for handheld shooting. But also no compromise due to the Triple-Rotating-Filter stage, equipped with 3 equally sized multiformat filter holders (510-01) 5x5 / 4x5.65".
True 14mm MatteBox -By using 5x5 filters, two rotate unrestrictedly and the first one can be rotated by 40°. The front stages (first and the second one respectively) are automatically held in place when the next further back is rotated.

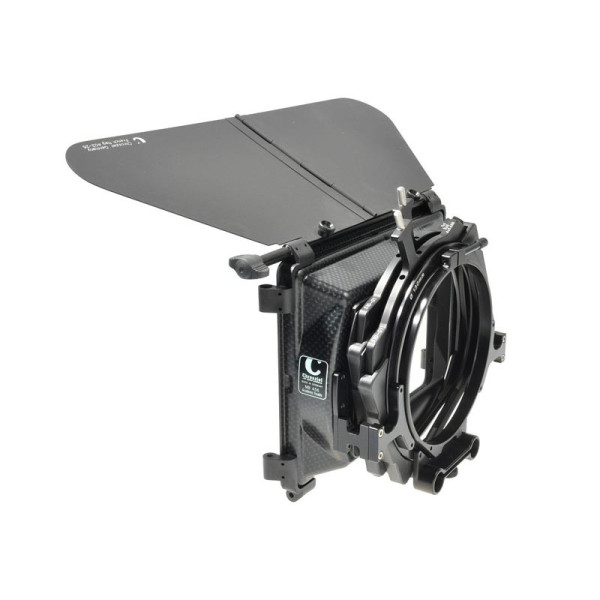

MatteBox 456 Academy Double, for cameras with full format chip, with Double - RotatingFilter Stage, incl. french flag (402-26), 2 filter holders multi-format 5x5/4x5.650 (510-01), 16:9 (416-03) matte insert, bracket for Ø15mm rods and clamp adaptor Ø130mm
Special feature - This MatteBox mounts on 15mm Lightweight Supports and comeswith a SunShade function. Starting with the clamp size of 130mm Ø, many step-down rings are available.
With the clamp to 110mm thread adaptor (411-67), the wide choice of 110mm light prevention rings can be used. The intermediate ring 411-60 reduces the clamping diameter for the 110mm step-down rings. The Flexi-Insertring 130 (411-68) is another special light prevention ring which fits into the 130mm clamp adaptor and flexibly covers lenses between 95 and 125mm diameter.
The 36 cm wide French Flag (402-26) is included in the standard package. Side-wings can be mounted optionally. "
Max. wide angle focus length F=mm | 35 & S35 14 | still 22 1/3HD 3.1 2/3"HD 6.2 |
Multi-Format 4:3 and 16:9 | S16, S35, SD, HD |
Mattes 4:3 for F=mm | - |
Mattes 16:9 for F=mm | universal |
Max. filter number / rotating / gear positioned | 3 / 3 / - |
Filter stage width (mm) | 150 |
Filter size (inch) | 5x5/4x5.65h |
Connecting diameter (mm) | 130 clamp-on |
Light weight support for rod | 15 mm Through adapters also bridge plates 15 and 19 mm |
