Il est adapté pour tous les appareils photo compacts et caméscopes avec capteur de grande taille
All models fit the 15 mm Lightweight Supports on the base of the 401-400. All filters can be moved vertically and fixed in all positions, all filters are also rotating. They come ready for shooting, with multi-format filterholders 410-04 (for 4x4 and 4x5.65") and 402-12 (4x4") for the rear stage, including French Flag and Front Mask**.
The standard model MB 450R2, comes with a double filterstage, the MB 450R3 offers a triple one (F max.=3.3 mm).
For cameras with interchangeable lenses, the DSW Direct-Swing-System offers an unparalleled comfort for quick and easy lens change. It can be factory fitted or added on by the user.
For light prevention, choose between fixed rings for each individual lens, or 2 flexible rings for lens diameters from 50 to 85 mm, respectively 75 to 98 mm. Fixed rings have the advantage to automatically position the lens to the MatteBox.

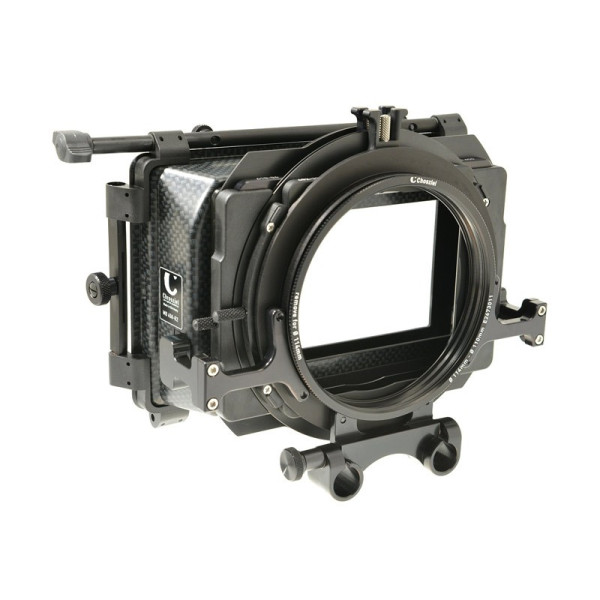

MatteBox 450R2, with Double-Rotating-Filter Stage, incl. mask 16:9, french flag (450-11), pivot mechanism for optional side wings, rotatable filterholders 4x4 (402-12) and multiformat4x4/4x5.650 (410-04), rod clamping Ø15mm rods, cover end plate Ø114/110mm"
Max. wide-angle focal length (1/3HD Chip) MB 450R2 F=mm MB 450R1 and MB 450W Super Wide | 3.1, (4 XDCAM ½") 2.6, (3.6 XDCAM ½") |
Multi-Format 4:3 and 16:9 | SD, HD |
Mask inserts 4:3 for F=mm | - |
Mask inserts 16:9 for F=mm | Universal from F = 4.5 mm |
Max. filter number / rotating | 1,2,3 / 1,2,3 |
Filter stage width (mm) | 150 / 110 rear stage |
Filter size (inch) | 4x5.65 / 4x4 |
Connecting diameter (mm) | 114 +110 / 130 Super Wide |
Support system: DV light-weight supports with rod | 15 mm |
