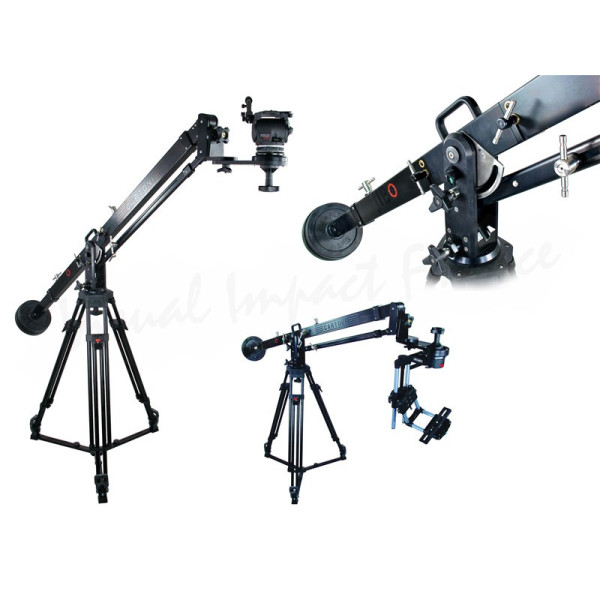

Cartoni JibO

The new portable 3 section CARTONI JIBO is designed to be one of the most versatile and cost effective lightweight Jibs, carrying upto 20 kg (44 lbs) and fits into a practical lightweight sturdy waterproof portableHPRC case on wheels.

The JIBO's innovative unique feature of the 3 easy mountingsections provides fast and easy operational flexibility and can beassembled or disassembled in less than 3 minutes.JIBO adds the benefit of diagonal tracking and elevation to the traditionalpan and tilt movement of a standard Fluid Head.

This new lightweight Jib weighs only 15 Kg (33 lbs) and folds down to 1.20meter (47) in length and allows shooting from absolute ground levelto 2 meters (78") in height, with a maximum extension of 172cm (67").The rear part of the arm, which holds the counterweights, is extendible toprovide for accurate camera balance : the typical counterweight kit is 20 kg (44 lbs)of rubberized gym weights.

The front telescopic arm permits the CARTONI JIBO to work in a wide varietyof shooting positions or requirements. The Fluid Head supporting the cameracan be positioned in several different positions as under-slung, side-ways, etc.The T-bar accessory is available for remote control set up and allows to installcontrols for camera and zoom.

JIBO interfaces with any 100mm bowl base tripod and for heavier set-upsa Mitchell base adapter is available .

Another unique feature is the horizontal lock for safer set-up operation.The JIBO's standard configuration includes a lightweight sturdy waterproofportable HPRC case on wheels, a 100mm bowl base head attachment with multipleorientation, left to right and on/under and 2 spirit levels.

• Payload capacity : 20 kg / 44 lbs
• Weight : 15 kg / 33 lbs
• Pan range : 360°
• Head mountings : 75 mm / 100 mm & flat with 3/8'' screw
• Min extension : 122 cm / 48''
• Max extension : 172 cm / 67''
• Bowl diameter : 100 mm / Mitchell
• Typical counterweight kit : 20 kg / 44 lbs (not included)
