Le S 4609 vous permet de séparer le contenu audio de vos sources SD/HD et 3G-SDI. Récuperez les sources audio via les sorties AES/EBU et analogiques. Retrouvez vos sources vidéos originales au travers des deux sorties SDI Loop.
Portable Mini Converter - SDI audio de-embedder

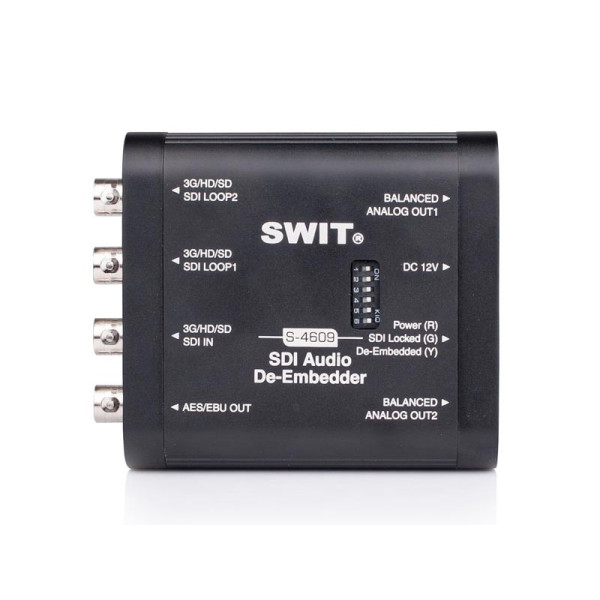

S-4609 is a portable mini converter of SDI audio de-embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field production and professional audio/video conversion and transmission.
Input and Output
S-4609 provides:
De-embed Channel Selection - By 6 switchers
S-4609 can de-embeded any 2-ch audio from SDI first 8-ch embedded audios. User can select the channel number to be de-embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4609 provides the description of the 6 switchers for reference.
Status Indicators - Power / Input / Output
S-4609 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if de-embedded audio is deliver.
Power Supply - Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4609 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.
Installation
S-4609 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.
Input | Supported formats | |
SDI | SMPTE-425M | 1080p (60 / 59.94 / 50) |
SMPTE-274M | 1080i (60 / 59.94 / 50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
SMPTE-296M | 720p (60 / 59.94 / 50) | |
SMPTE-125M | 480i (59.94) | |
ITU-R BT.656 | 576i (50) |
Input | ||
BNC ×1 | 3G/HD/SD-SDI input ×1 | |
Output | ||
BNC ×2 | 3G/HD/SD-SDI loop output ×2 | |
BNC ×1 | AES/EBU digital audio output ×1 | |
6.35mm ×2 | Analog audio (balanced) output ×2 | |
Video Formats | ||
SDI | SMPTE-425M | 1080p (60 / 59.94 / 50) |
SMPTE-274M | 1080i (60 / 59.94 / 50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
SMPTE-296M | 720p (60 / 59.94 / 50) | |
SMPTE-125M | 480i (59.94) | |
ITU-R BT.656 | 576i (50) | |
Audio Formats | ||
Digital audio | Type | AES/EBU |
Output level | 5Vp-p | |
Sample frequency | 48KHz | |
Analog audio | Max output level | +24dbu |
Bandwidth | 20Hz-20KHz | |
General | ||
Power | ?3W | |
Working Voltage | DC 6-18V | |
Working Environment | Temperature: 0°C-+50°C, Humidity:10%-90% | |
Dimensions | 98×84×29 mm | |
Net weight | 235g |
