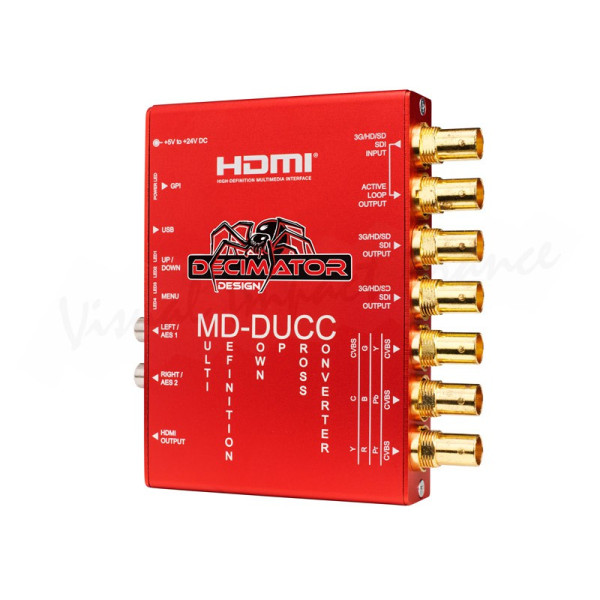

Decimator MD DUCC

Multi-Definition Down Up Cross Converter(3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Videowith 2 x AES/EBU or 2 x Analogue Audio Outputs

• The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
• When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
• Auto detects 3G, HD or SD (26 Formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing
• True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
• Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
• Full 16-Channel Audio metering with:
  • Any of the 4 audio groups individually selectable
  • Vertical or Horizontal Bars
  • AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
  • Bar & Float, Bar only or Float only
  • Transparency adjustment
  • Separate Bar and Float Ballistics control
  • Adjustable Reference level
  • Red, Yellow and Green Range adjustment
  • Bar thickness adjustment
  • Margin adjustment
• Adjustable Graticules Generator with:
  • Separate enables for Safe Action, Safe Title and Centre Cross
  • Adjustable position for either Safe Action or Safe Title
  • Adjustable colours for Safe Action, Safe Title and Centre Cross
• Text Overlays with:
  • Adjustable Foreground and Background colours
  • Adjustable 16 character text
  • Current input format status
• HDMI output
• Selectable analogue video output from:
  • 3 x CVBS out
  • YPbPr out
  • RGB out
  • CVBS & YC out
• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
• GPI on RJ-45 for Tallies
• 3G/HD/SD-SDI Active Loop-Through Output
• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
• LEDs for status and buttons for basic configuration
• USB port for control and firmware updates
• Locking DC Power Socket
