Datavideo PTC 140NDI
La caméra PTC-140 est équipée d'un capteur CMOS 1/2,8 pouces et prend en charge la résolution Full HD 1920 x 1080p, 60 i/s. Présentez la PTC-140NDI comme source d'entrée vidéo pour les applications de streaming vidéo Skype, GoToMeeting, WebEx, Zoom, etc.

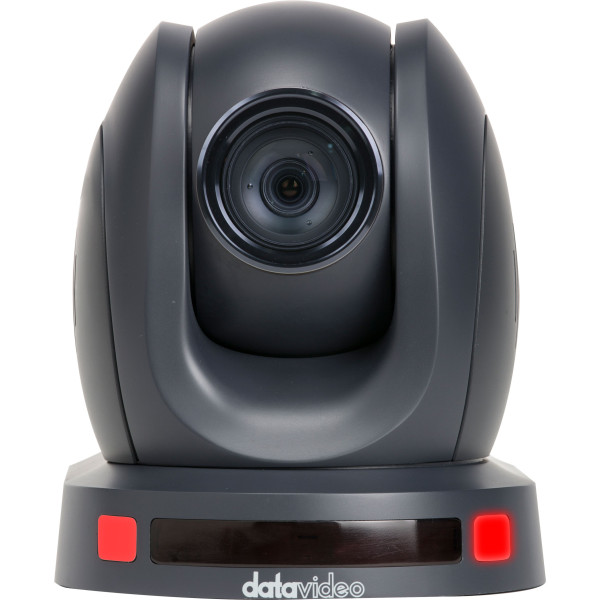

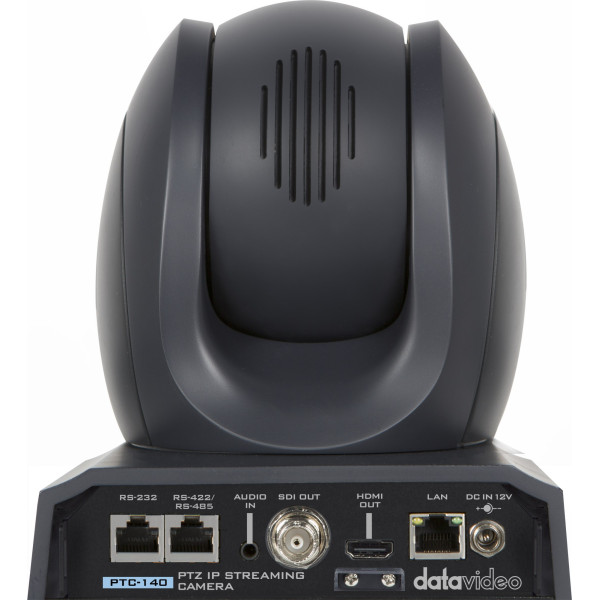

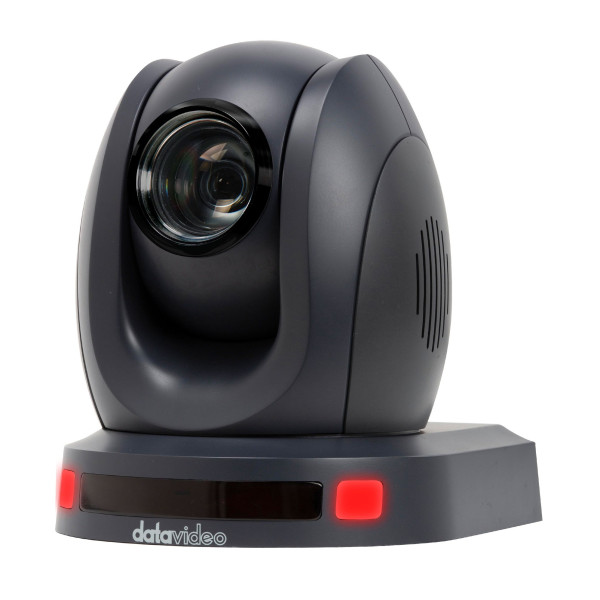

Caméra PTZ DataVideo PTC 140NDI
- Capteur CMOS 1/2,8 pouces de qualité de diffusion
- Modèles de couleurs bleu foncé et blanc
- Prend en charge la compression vidéo H.264 / H.265
- Disponible pour contrôler de plusieurs façons
- Un câble Ethernet avec NDI® | Technologie HX
- Entrée virtuelle NDI®
- Protocole réseau multiple
- Tally Light
- Parfaitement compatible avec DVCloud
| PTC-140NDI NDI PTZ Camera | |
|---|---|
| Video format |
1080p 60/59.94/50/30/29.97/25 |
| Image Sensor |
1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) |
2.07 Mega pixels |
| S/N Ratio |
>55dB |
| Min. Illumination |
0.5Lux (F1.8, AGC ON) |
| Electronic Shutter |
Auto / Manual |
| Zoom Ratio |
20x Optical Zoom, 10x Digital Zoom |
| Gamma Control |
Off / Normal |
| Iris Control |
Auto / Manual |
| Digital Noise Reductions |
Yes |
| On-Screen Display (OSD) |
English, Simplified Chinese |
| White Balance |
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control |
Auto / Manual |
| Mirror / Flip Image |
Yes |
| Focus Mode |
Auto / Manual |
| Panning / Tilting Range |
Pan: 340° |
| Panning / Tilting Speed |
Pan: 0.1~60°/sec |
| Preset |
255 Positions |
| Focal Length |
f=5.2 (wide) to 98 (tele) mm |
| Field of View (Horizontal, Wide) |
Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation |
Backlight Compensation |
| Video Output |
HDMI x 1 |
| Audio Input |
3.5mm Line in |
| Tally LED |
Dual colors (Red, Green) |
| Lens Filter |
M52.0 x 0.75 Thread with UV Protection |
| Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps |
| Remote Control Interface and Transmit Distance |
LAN: for IP control (DVIP / NDI®) |
| Video Compression Format |
H.264, H.265, Dual stream output |
| Audio Compression Format |
AAC/MP3/G.711A Audio compression |
| HD IP Interface |
100M IP port(100BASE-TX); Support DVIP and NDI® |
| Streaming Protocols |
TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc |
| F/W Update |
Ethernet |
| IR Control |
Yes |
| Camera Control Unit |
RMC-180/RMC-300C/RMC-300A |
| Tripod Mount |
1/4-20 UNC |
| Optional Accessories |
WM-1/ WM-10/WM-11 |
| Color |
Dark Blue/White |
| Dimension (LxWxH) |
156 x 184 x 186 mm |
| Weight |
1.6 kg |
| Operating Temp. Range |
0~40 °C |
| Power |
DC 12V 12W |
- 1 x PTC-140 Unit

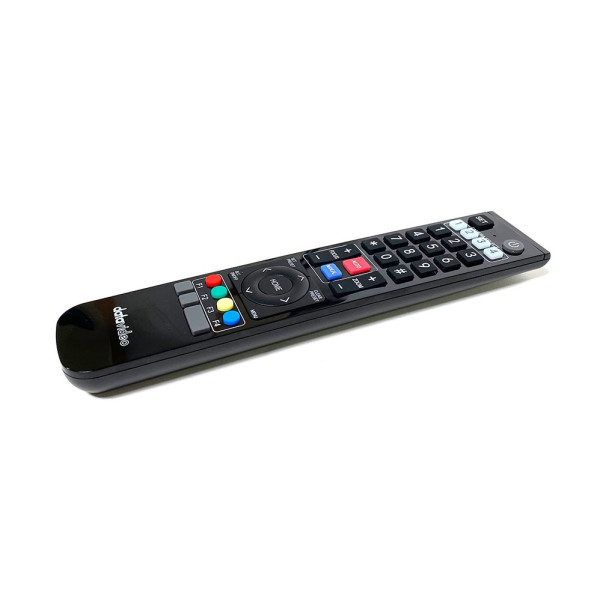

- 1 x IR remote controller
- 1 x PTC-140 Thank You Card
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket -B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x UV Filter
- 1 x DC 12V Power Adaptor
- 1 x Power Cord
- 1 x A braided safety cable
- 1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
- 1 x RS-485 2 Pin Connector
