Swit S 8152 S

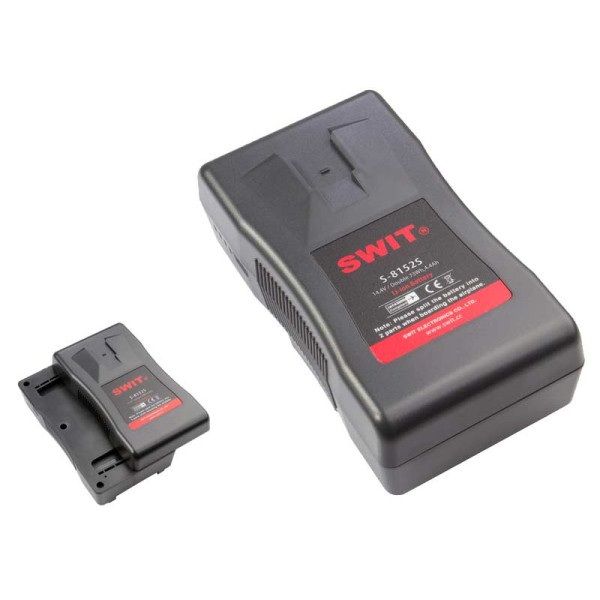

Le modèle S-8152S breveté de SWIT est une batterie monture V séparable 2 x 63, pouvant être détachée en deux parties de chacune 73Wh pour un total de 146Wh et dotée d'une prise D-tap pour alimenter une lampe de caméra ou d'autres équipements. Elle est équipée d'un indicateur led à 4 niveaux pour vous donner un aperçu de l'énergie restante avant le montage sur la caméra et d'une semelle de connexion pour un récepteur sans fil S-7002. Le circuit intelligent intégré est doté de nombreuses protections contre les courants, tensions et températures anormales.

La teneur en li-ion des cellules de la batterie monture V séparable 2 x 73Wh S-8152S est conforme aux régulations de sécurité du transport aérien IATA. Avant son transport par avion, elle doit être détachée en deux parties pour se conformer aux régulations IATA et être réassemblée une fois descendu de l'avion, pour l'alimentation de la caméra.

Caractéristiques

• Capacité de 73Wh+73Wh, 14,4V.
• Prise D-tap
• Indicateur led 4 niveaux
• Monture en V métallique
• Monture de récepteur sans fil
• Structure séparable pour le transport aérien

Large Capacity Battery, Complied with IATAThe IATA DGR regulations restricted the air transportation of over 100Wh Li-ion battery packs:

Battery Capacity	Carry-on Baggage	Air Cargo Shipping
Under 100Wh	OK	OK
100Wh-160Wh	Only 2pcs allowed	Not allowed
Over 160Wh	Not allowed	Not allowed

Since the large capacity batteries are quite necessary, SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8152S can be divided into 2 parts, and each part contains 73Wh capacity, not restricted by air transportation. And when using S-8152S, just assemble the 2 parts, you can get a Li-ion battery pack of 146Wh large capacity.

146Wh / 10.2Ah High Capacity
When assembled, the S-8152S consists of 16pcs 18650 battery cells, and reaches 146Wh / 10.2Ah high capacity. S-8152S can run approx 4.5 hours for normal 30W ENG cameras, and has no problem to fly with.

Reliable V-mount Connection
S-8152S is the standard SONY V-mount connection and we adopt the high quality metal V-wedge that ensures the reliable mounting.

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8152S battery, for DC14.4V (Nominate) connection, such as on-cameralights, monitors, wireless transmitter, etc. The Max Power from D-tap is 100W, 8A.

4-level LED Power Indicator
On the side of the battery, there're 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Adopted high quality Lithium cells
Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted. The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.Moreover, the cells we're using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

Strong and Durable Housing
Adopt the thicker and wider nickel slice to solder the cells, minimize the voltage drop, dissipate heating, and enhance the assembly intensity. The cells are arranged as triangular structure in the battery pack, stable and anti-shock. The cell holder inside can protect the cells pack, and separate the circuit board from the cells, to keep the boards away from internal pressure and ensure a stable working.

Multiple Safety Protection Design
The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected.Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.??????

Cell balance adjustment
After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimizethe imbalanced cells, to prolong the battery life.
